ecrabb's "Prairie Home Cinema" HT

Basic Room Configuration & Equipment

The room took approximately five months to mostly complete, working almost only on weekends, and definitely not all weekends.

I'm not sure the room would ever been usable without the help from my most excellent friend, Chad (IgnoringMyWife). I'm eternally grateful for his help, perseverance, and support. I'll owe him for all his hard work for a very long time.

A few details like the rack finishing, trim, screen border, and screen lighting were completed over a couple of weekends much later. A word to the wise: Unless you are extremely disciplined, DO NOT hang your projector until the room is as complete as you want it to be for some time. Otherwise, you'll need to schedule a home theater meet to "light the fire" so to speak. It worked for me!


Room
13' wide x 18' long x 7'9" ceiling height
All double-drywall with Green Glue on Integrity Gasket
Commercial low-pile carpet
Insteon-controlled halogen lighting
ATS Acoustics sound treatments on side walls
Berkline recliners (6, from ebay)
(6) Berks - 3 on the floor, 3 on 8" riser

Sources
Sony PS3 (Blu-ray, gaming, media extender)
Apple TV (primarily for Airplay and YouTube)
Xbox 360 (Rarely used)
DirecTV HR22 HD DVR
Toshiba XA1 (HD-DVD)
HTPC - XBMC

Audio
Integra DHC-9.9 Preamp/Processor (running 6.1)
(3) Crown XLS-202D 300w into 4-ohm M&K's
M&K LCR-750THX (LCR)
M&K S-550THX (SL, SR, SB)
(2) DIY subs (Dayton RSS390HF-4 15" Reference, O-Audio 500w BASH, large sealed cabinet)
Behringer DSP1124P EQ

System plays clean to near-reference levels, and is pretty flat to below 20 hz, with good usable output well below. It's not what I'd consider "high performance" compared to what a lot of guys are doing these days, but it's pretty damn good for the amount of money I've spent.

Display
JVC DLA-RS45

Screen and Viewing Distances/Angles
DIY 96"x54" WilsonArt Designer White laminate screen on 3/4" MDF
Approx 10' to front row center (50 degrees)
Approx 15' to second row center (32 degrees)

System Control
iRule remote app for iPhone, iPad, and Android-based full system control even the wife can use.

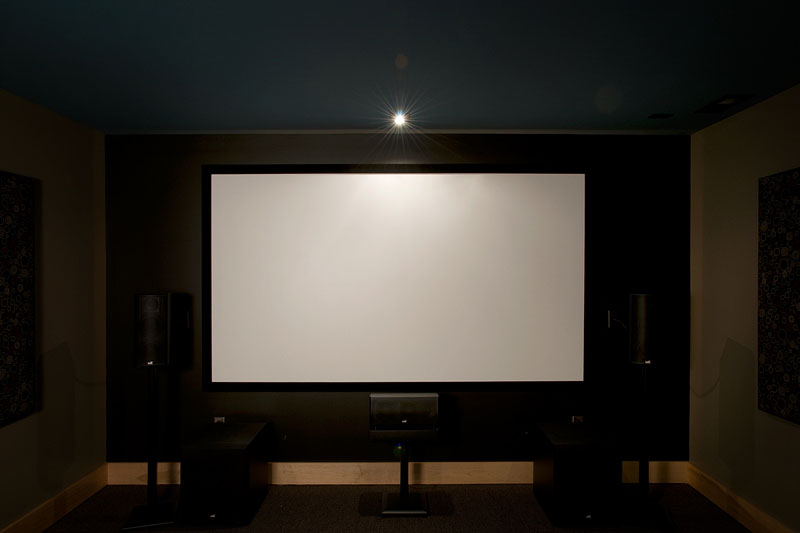

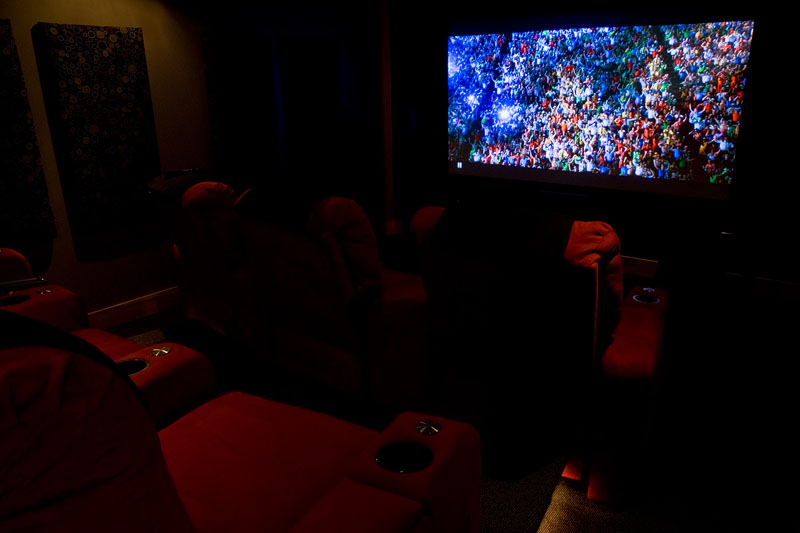

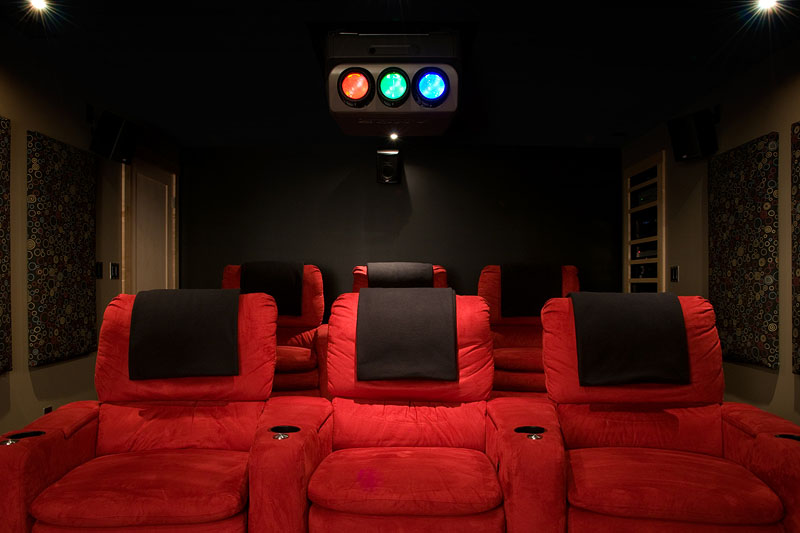

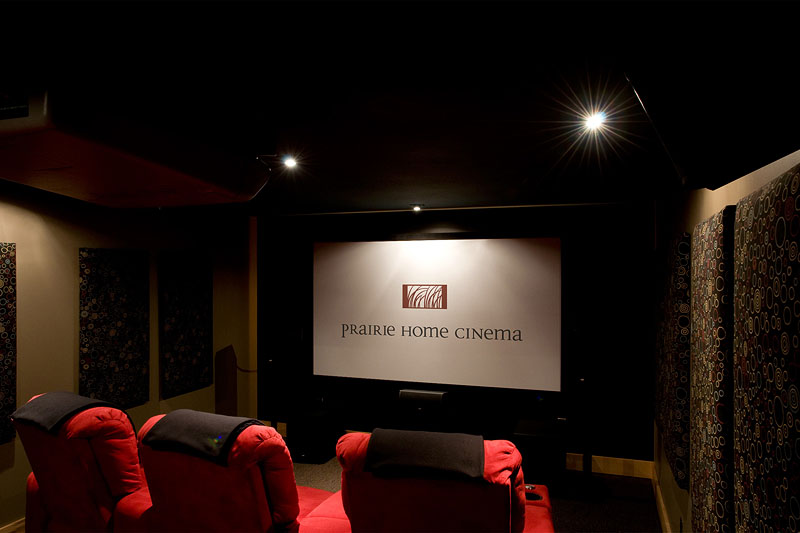

Photos

xxx

xxx

xxx

xxx

xxx
